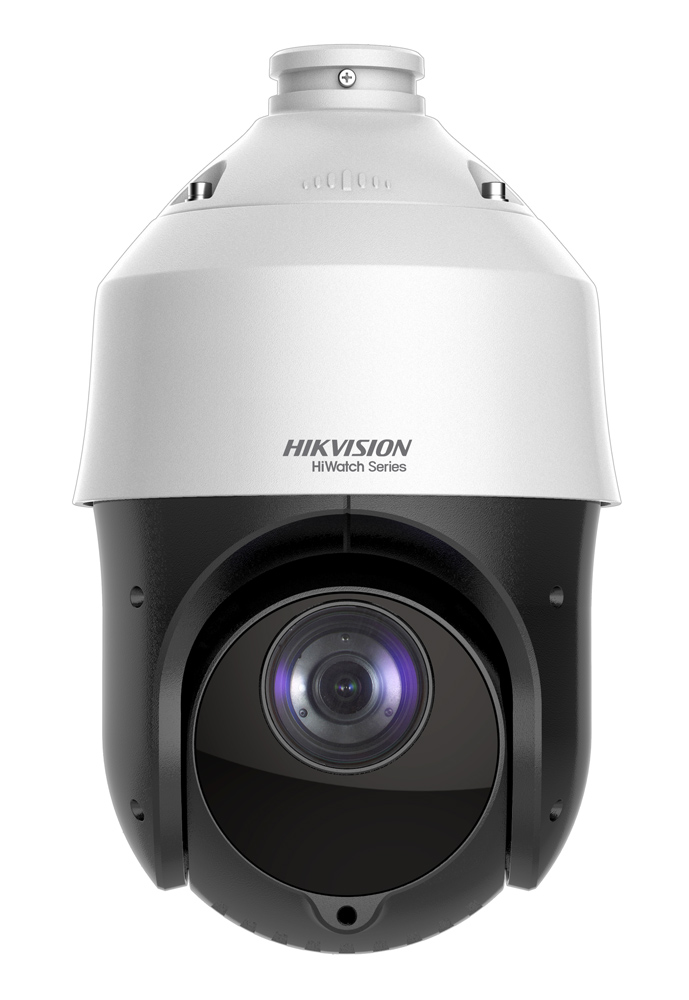

HIKVISION HIWATCH IP κάμερα HWP-N4215IH-DED, 2MP, PTZ, 15x zoom, IR 100m
Δικτυακή IP κάμερα της σειράς HiWatch από την Hikvision, με 5-75mm zoom φακό, αισθητήρα ανάλυσης 2MP και έως 100m εύρος υπερύθρων IR. Υποστηρίζει PTZ λειτουργία και 15x οπτικό zoom.
Το σώμα της κάμερας είναι κατασκευασμένο από ανθεκτικό μεταλλικό υλικό με IP66 βαθμό στεγανοποίησης. Τα βίντεο που καταγράφονται αποθηκεύονται εσωτερικά σε κάρτα μνήμης micro SD έως 256GB (δεν συμπεριλαμβάνεται).
-αισθητήρας ανάλυσης 2MP
-1080p ανάλυση καταγραφής βίντεο
-15x οπτικό zoom & 16x ψηφιακό zoom
-Η.265+ τεχνολογία κωδικοποίησης
-εύρος υπερύθρων IR έως 100m
-IP66 βαθμός στεγανοποίησης
-έως 24 προγραμματιζόμενα privacy masks
-υποστήριξη ROI
-τροφοδοσία 12 VDC & PoE+
-υποστήριξη 120dB WDR & 3D DNR
Τεχνικά χαρακτηριστικά
Camera Module
Image Sensor: 1/2.8" progressive scan CMOS
Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC: Auto/Manual
Shutter Time: 1/1 s to 1/30,000 s
Day & Night: IR Cut Filter
Digital Zoom: 16x
Privacy Mask: 24 programmable privacy masks
Focus Mode: Auto/Semi-automatic/Manual
WDR: 120 dB WDR
Lens
Focal Length: 5 mm to 75 mm, 15x optical
Zoom Speed: Approx. 2.4 s (optical lens, wide-tele)
FOV: Horizontal field of view: 53.8°to 4.0°(wide-tele), Vertical field of view: 31.9°to 2.3°(wide-tele), Diagonal field of view: 60.4°to 4.6°(wide-tele)
Working Distance: 10 mm to 1500 mm (wide-tele)
Aperture Range: F1.6 to F3.0
IR
IR Distance: Up to 100 m
Smart IR: Support
PTZ
Movement Range (Pan): 360° endless
Pan Speed: Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Movement Range (Tilt): From -15° to 90°(Auto-flip)
Tilt Speed: Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Proportional Zoom: Support
Presets: 300
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display: Support
Preset Freezing: Support
Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Compression Standard
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG
H.264 Type: Baseline Profile/Main Profile/High Profile
H.264+: Support
H.265 Type: Main Profile
H.265+: Support
Video Bitrate: 32 Kbps to 16384 Kbps
SVC: Support
Smart Feature
Basic Event Detection: Motion Detection, Video Tampering Detection, Exception Detection
Smart Event Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
ROI encoding: Main stream, sub-stream and third stream respectively support four fixed areas.
Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
Max. Resolution: 1920×1080
Main Stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720), 60Hz: 30fps (1920×1080, 1280×960, 1280×720)
Sub-Stream: 50Hz: 25fps (704×576, 640×480, 352×288), 60Hz: 30fps (704×480, 640×480, 352×240)
Third Stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288), 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240)
Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Network Interface: 1x RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4)
General
Power: 12VDC, 2A and PoE (802.3at), 42.5 to 57VDC, 0.6A, class4, Max.: 18W (IR light 6W Max.)
Working Temperature -30 °C to 65 °C
Working Humidity: </= 90%
Protection Level: IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material: ADC 12, PC+10% GF

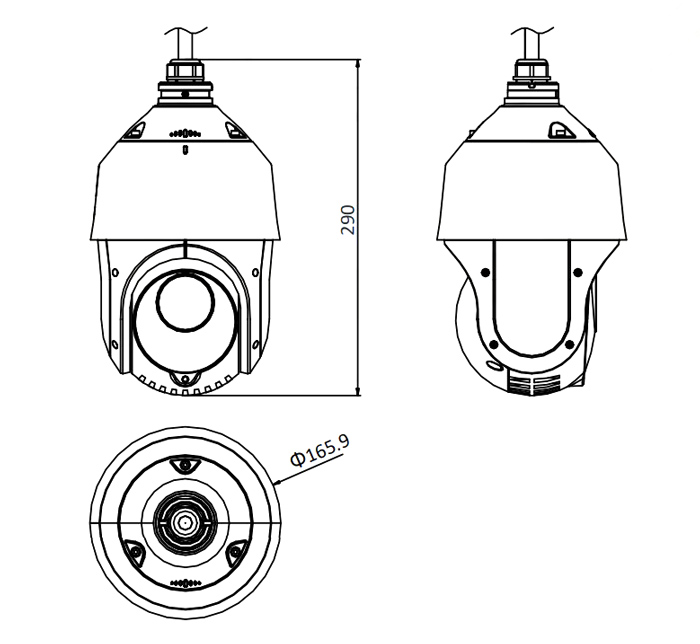

Dimensions: Φ 165.9 x 290mm
Weight Approx.: 2.5kg
Περιεχόμενα συσκευασίας
Κάμερα
Τροφοδοτικό
Κλειδί Allen
Αδιάβροχοι σύνδεσμοι καλωδίων
Εγχειρίδιο χρήσης
